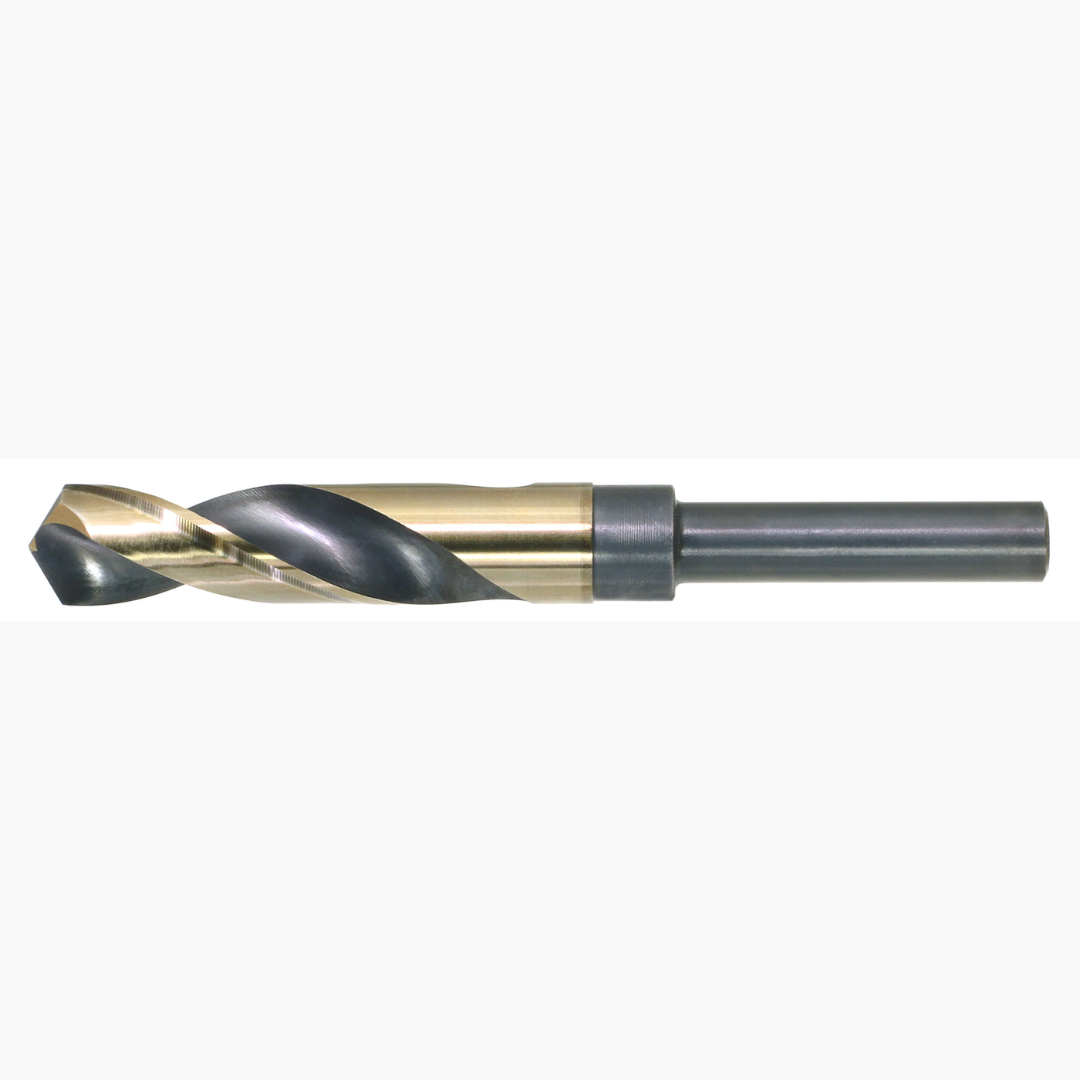

Drillco 1 2 Shank Cobalt S & D Drills, Series 1000C



General purpose flute design but all sizes have a 1 2 by 2-1 4 long shank. The maximum overall length is 6 and the flute length is 3. This makes them short drills in the larger sizes and thus well suited to use in portable electric drills equipped with 1 2 chucks. They are highly effective in tough high tensile strength materials. The 135 degree split point reduces thrust and eliminates walking at the drill point.



Size (Inches)		Part No.
33 64		1000C133
17 32		1000C134
35 64		1000C135
9 16		1000C136
37 64		1000C137
19 32		1000C138
39 64		1000C139
5 8		1000C140
41 64		1000C141
21 32		1000C142
43 64		1000C143
11 16		1000C144
45 64		1000C145
23 32		1000C146
47 64		1000C147
3 4		1000C148
49 64		1000C149
25 32		1000C150
51 64		1000C151
13 16		1000C152
53 64		1000C153
27 32		1000C154
55 64		1000C155
7 8		1000C156
57 64		1000C157
29 32		1000C158
59 64		1000C159
15 16		1000C160
61 64		1000C161
31 32		1000C162
63 64		1000C163
1		1000C164

Size

33/64" – 1000C133, 17/32" – 1000C134, 35/64" – 1000C135, 9/16" – 1000C136, 37/64" – 1000C137, 19/32" – 1000C138, 39/64" – 1000C139, 5/8" – 1000C140, 41/64" – 1000C141, 21/32" – 1000C142, 43/64" – 1000C143, 11/16" – 1000C144, 45/64" – 1000C145, 23/32" – 1000C146, 47/64" – 1000C147, 3/4" – 1000C148, 49/64" – 1000C149, 25/32" – 1000C150, 51/64" – 1000C151, 13/16" – 1000C152, 53/64" – 1000C153, 27/32" – 1000C154, 55/64" – 1000C155, 7/8" – 1000C156, 57/64" – 1000C157, 29/32" – 1000C158, 59/64" – 1000C159, 15/16" – 1000C160, 61/64" – 1000C161, 31/32" – 1000C162, 63/64" – 1000C163, 1" – 1000C164
