Replacement Screens For FUPA 12 Cups Hot on Sale
30 people are viewing this right now
13 products sold in last 19 hours
Selling fast! Over 2 people have this in their carts
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200

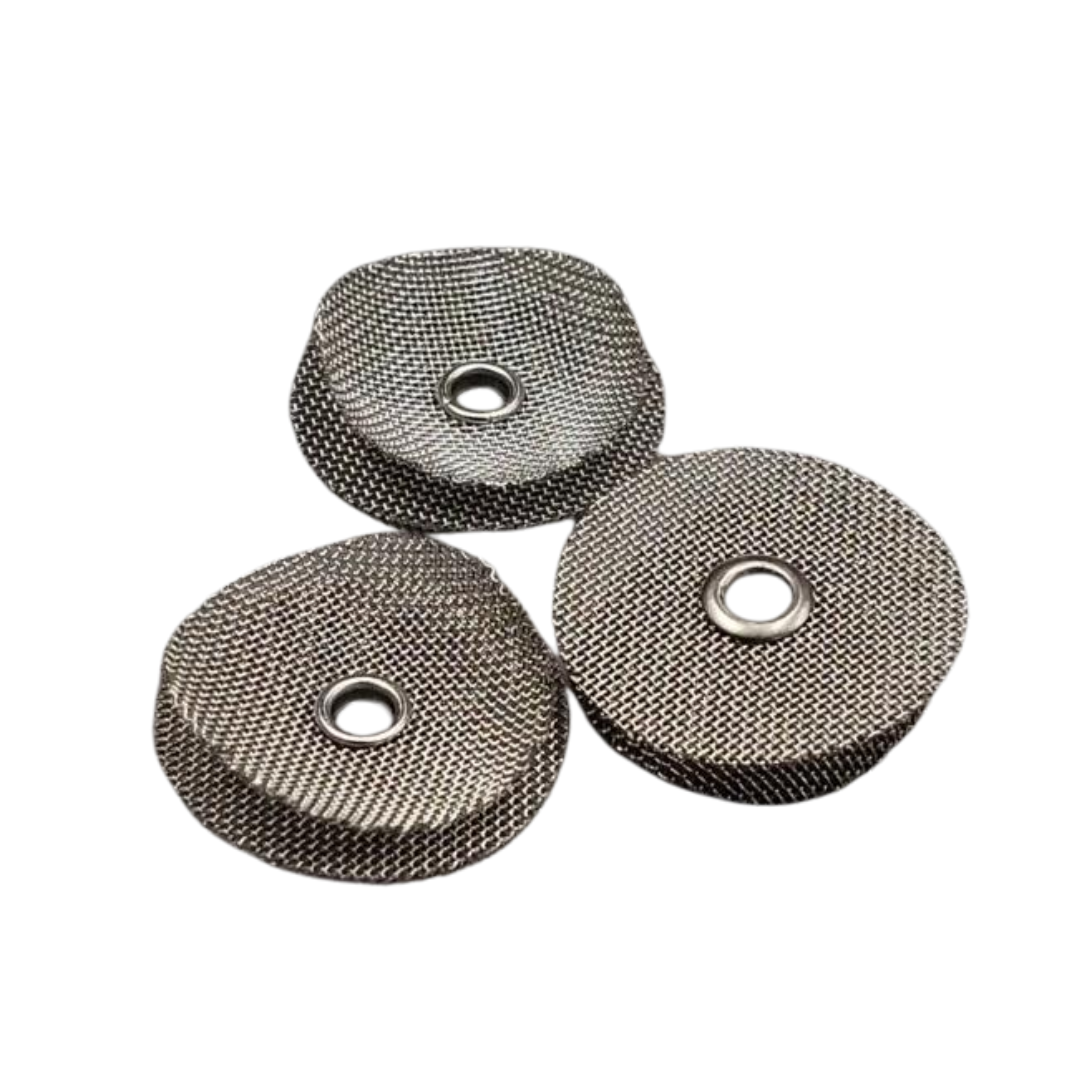

Replacement Screens For Furick FUPA 12 Cups

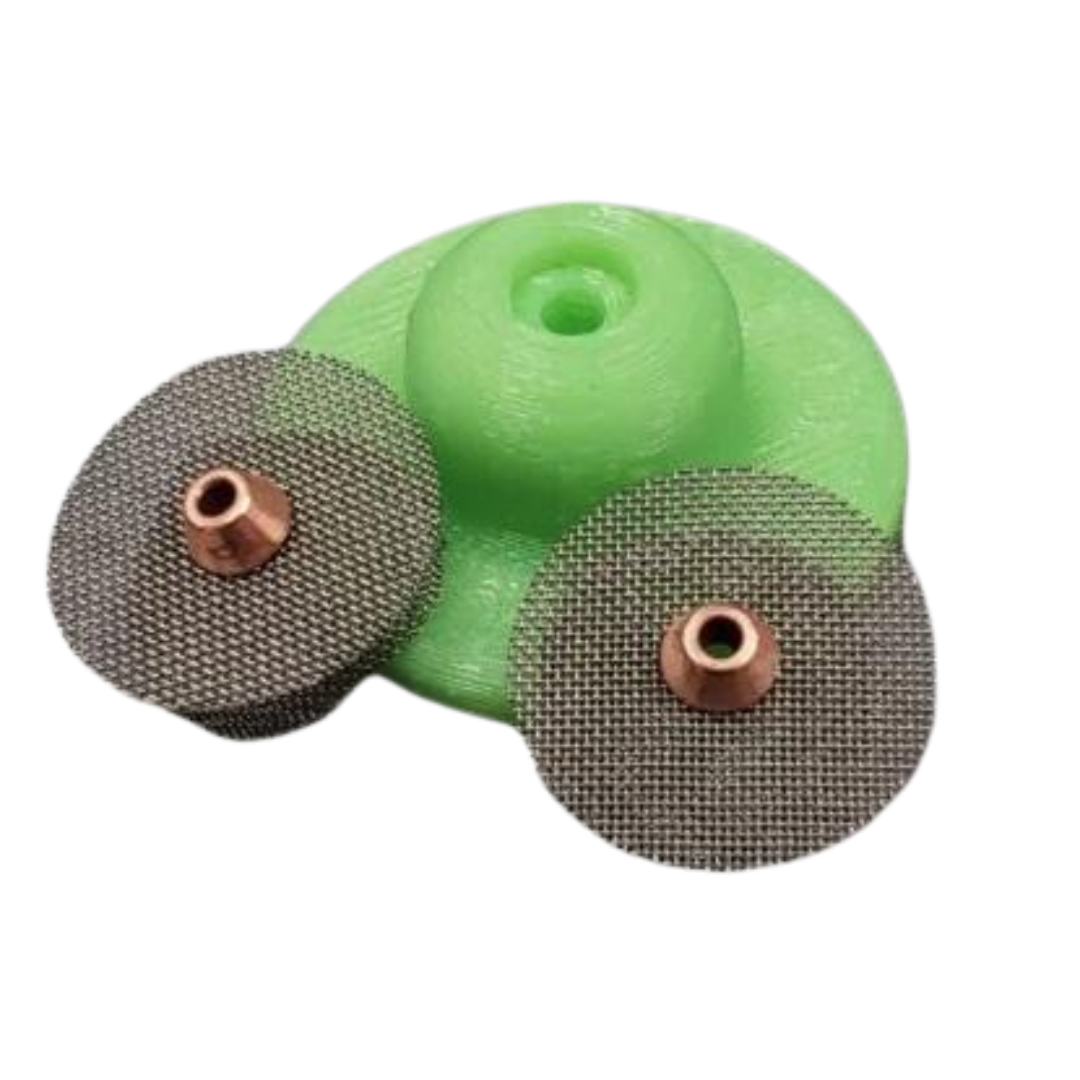

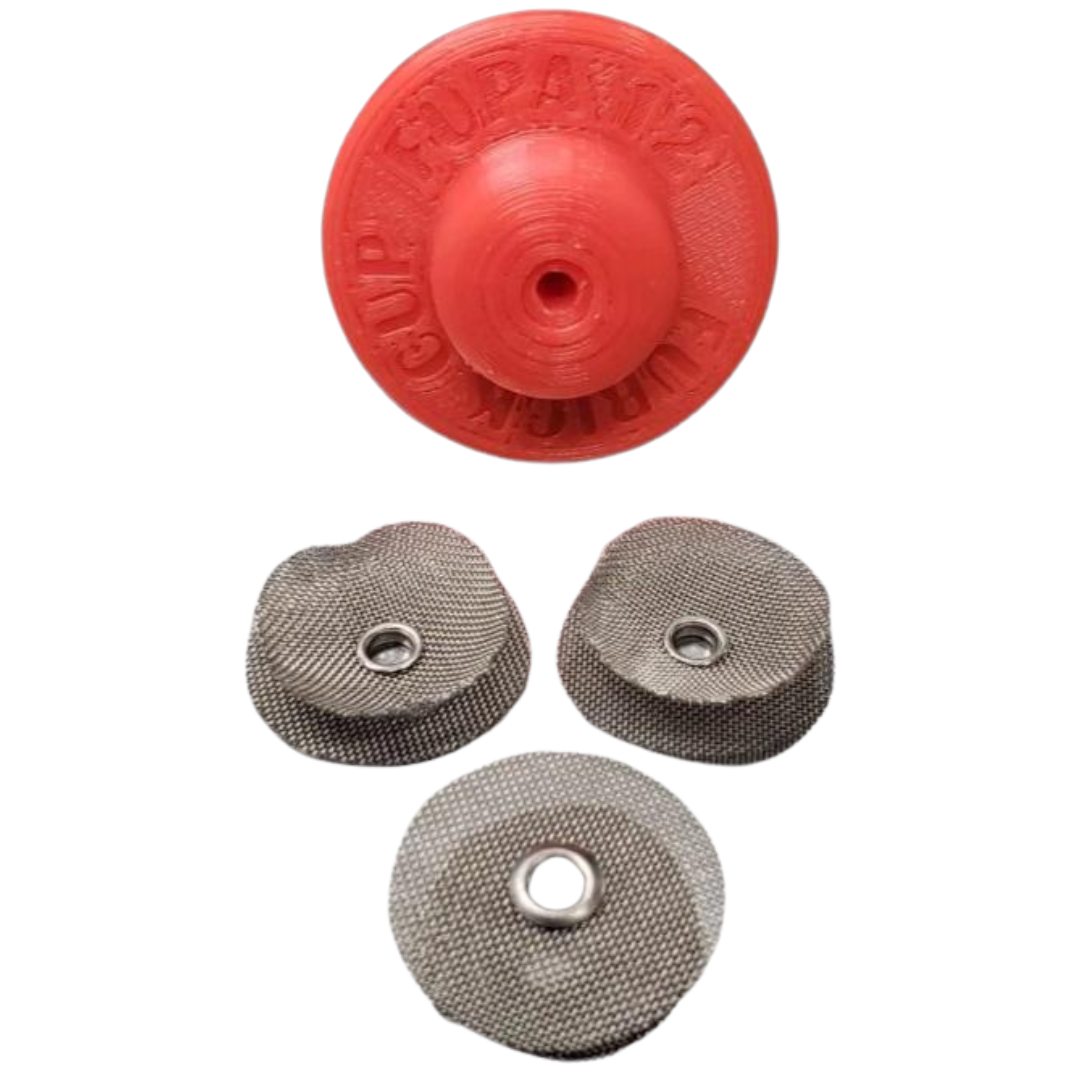

Replacement screens for the FUPA 12 glass and ceramic cups. Please see the FUPA 12 screen install tool to aid in easy screen install.
- Install with cupped screen facing inside cup and push flat side into cup evenly. It may take a few tries to get the screen even. Make sure there is even gap between the screens and the screen facing the end is tight against the wall of the glass.
- It is recommended that you keep the diffuser the shape it comes and you remove and reinstall if it gets out of shape. Also it is recommended with all the BIG Diffuser cups that the user start off on low amps to stabilize the arc as to make sure you will not arc off diffuser. If diffuser arcing occurs you will have to clean regrind the tungsten. You will not hurt the diffuser on low amps but if arc with high amps you can deteriorate the diffuser.
- Please see below image for reference of a correct screen install.
- 1 16 (1.6mm) – Diffuser Kit – ITF116K (2 pack diffusers + Instal tool)
- 3 32 (2.3mm) – Diffuser Set – FU12D3332 (3 pack diffusers)
- 1 8 (3.2mm) – Diffuser Kit – ITFM125K (3 pack diffusers + Instal tool)
- For 9 & 20 series torches – 2 series wedge style collet 2CxxxGS
- For 17, 18 & 26 series torches – Short wedge style collet (Stubby) 4CxxxGS
- Made in the USA.
-
Options 1/16" (1.6mm) – Diffuser Kit – ITF116K, 3/32" (2.3mm) – Diffuser Set – FU12D3332, 1/8" (3.2mm) – Diffuser Kit – ITFM125K
